Description

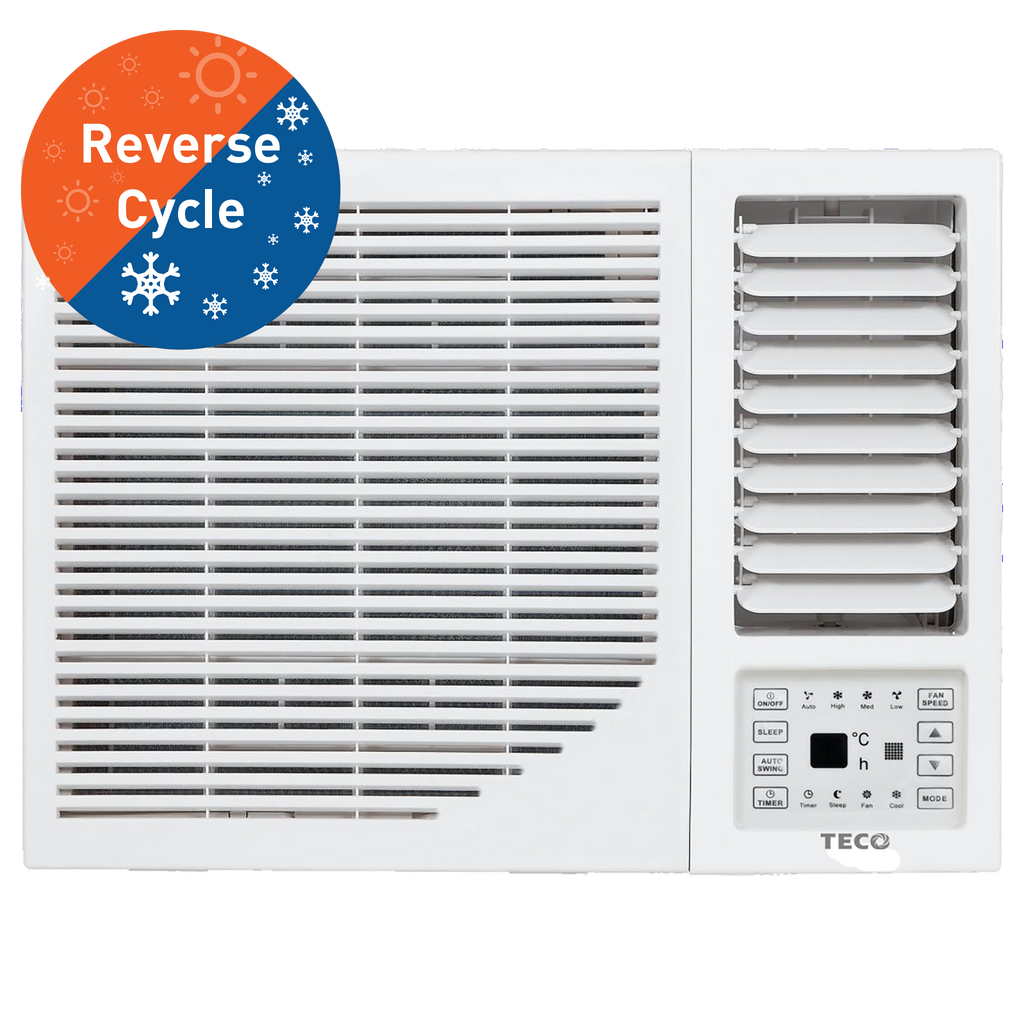

Experience year-round comfort with the TECO 2.2kW Reverse Cycle Window Wall Air Conditioner, a standout in the CLASSIC RANGE. This versatile unit offers flexible installation options for both current and future needs, making it an ideal choice when wall split or ducted systems are not feasible due to building constraints.
Key Features:
- Flexible Installation: Designed for both window and wall mounting, perfect for various settings and easy to adapt as your needs change.
- Compact Dimensions: H 380 x W 600 x D 560 mm with a net/gross weight of 33/36 kg, fitting seamlessly into standard cut-out sizes (385 x 605 mm).
- Advanced 3-in-1 Filter: Features a comprehensive filtration system including Photocatalyst, Active Carbon, and Static-Free filters. This multi-layer system effectively reduces dust, dirt, and airborne particles, ensuring cleaner air.
- Wireless Remote Control: Enjoy effortless operation from anywhere in the room with the convenient wireless remote. Power on/off and adjust settings without leaving your seat.
- Auto Swing Airflow: Automatic horizontal swing feature ensures even air distribution, quickly reaching and maintaining your desired temperature.
- Gold Fin Protection: Enhanced Gold Fin coating prolongs the life of the aluminium condenser fins by preventing corrosion from acids, salts, and airborne contaminants, thereby extending the unit's performance and durability.
- ECO Mode: Economic mode helps reduce running costs by cycling off the compressor and fan motor once the set temperature is reached, with the fan motor maintaining the temperature efficiently.
- Sleep Mode: Reduces fan speed and gradually adjusts temperature to ensure a comfortable and restful sleep experience.
Dimensions
- H 380 x W 600 x D 560 mm
- Net/Gross Weight: 33/36kg
- Recommended cut-out size (HxW):
- 385 x 605mm
| Model | TWW22HFAT | ||
| Cooling / Heating Capacity (kW) | 2.2 | 2.05 | |
| Power Supply (v) | 220~240 | ||
| Phase - Frequency (Ph - Hz) | 1 - 50 | ||
|
Plug Size (A) |
10 | ||
| Cooling / Heating Run Current (A) | 3.1 | 2.6 | |
| Cooling / Heating Input (W) | 680 | 600 | |
| Moisture Removal (L/Hr) | 0.8 | ||
|
A.E.E.R |
3.21 | ||
| A.C.O.P | 3.39 | ||

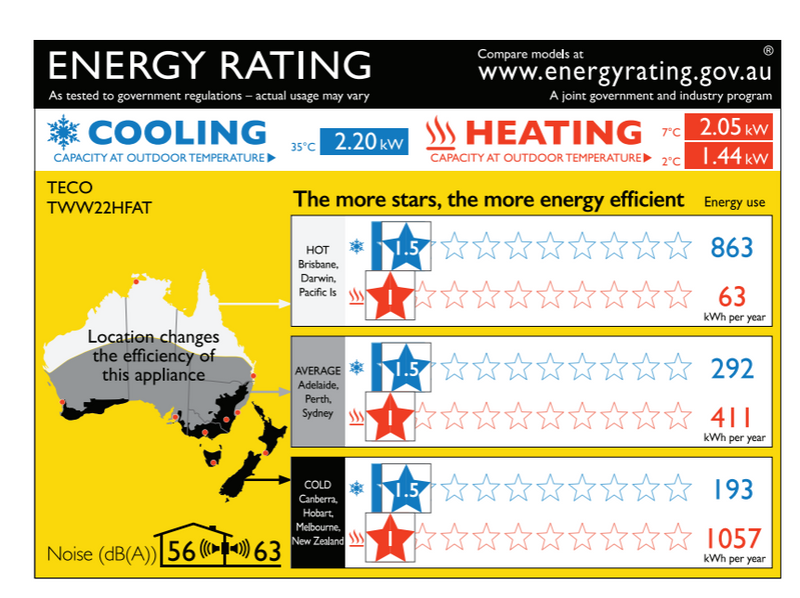

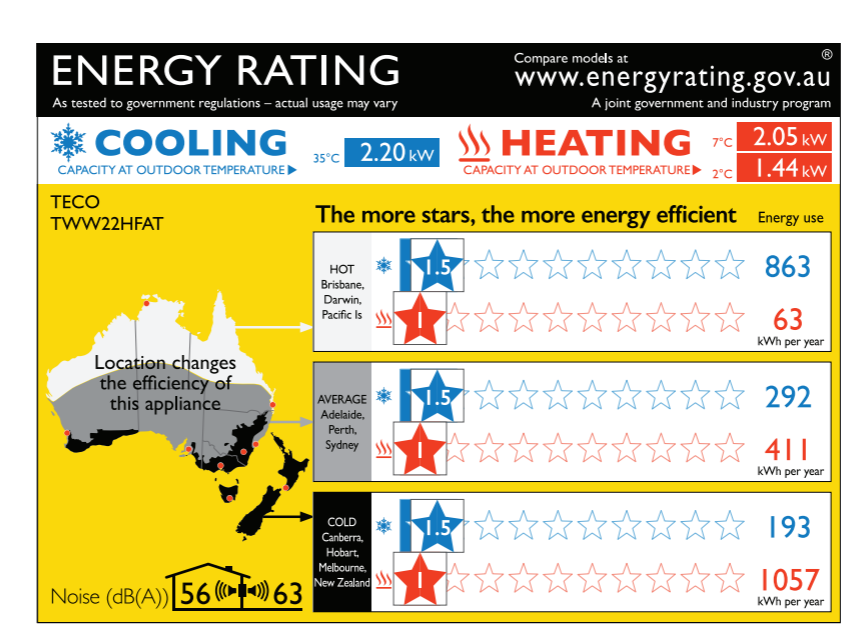

| Cooling / Heating Star Rating | 1.5 / 1.5 / 1.5 | 1.5 / 1.5 / 1.5 | |
| Fan Speeds | 3 + Auto | ||
| Indoor Cooling Air Flow (Max) (L/s) | 114 | ||
| Compressor Type | Rotary | ||
| Unit Dimensions (H x W x D) (mm) | 380 x 600 x 560 | ||
| Net Weight | Kg |
33 |
|
| Recommended cut-out size (H x W) | mm | 385 x 605 | |
| ID Sound Power | dBA@1m | 56 | |
| OD Sound Power | dBA@1m |
63 |
|
| Refrigerant Type | R410A | ||
| Cooling / Heating Outdoor Operating Temp. | °C | 18~43 | -7~27 |
