Description

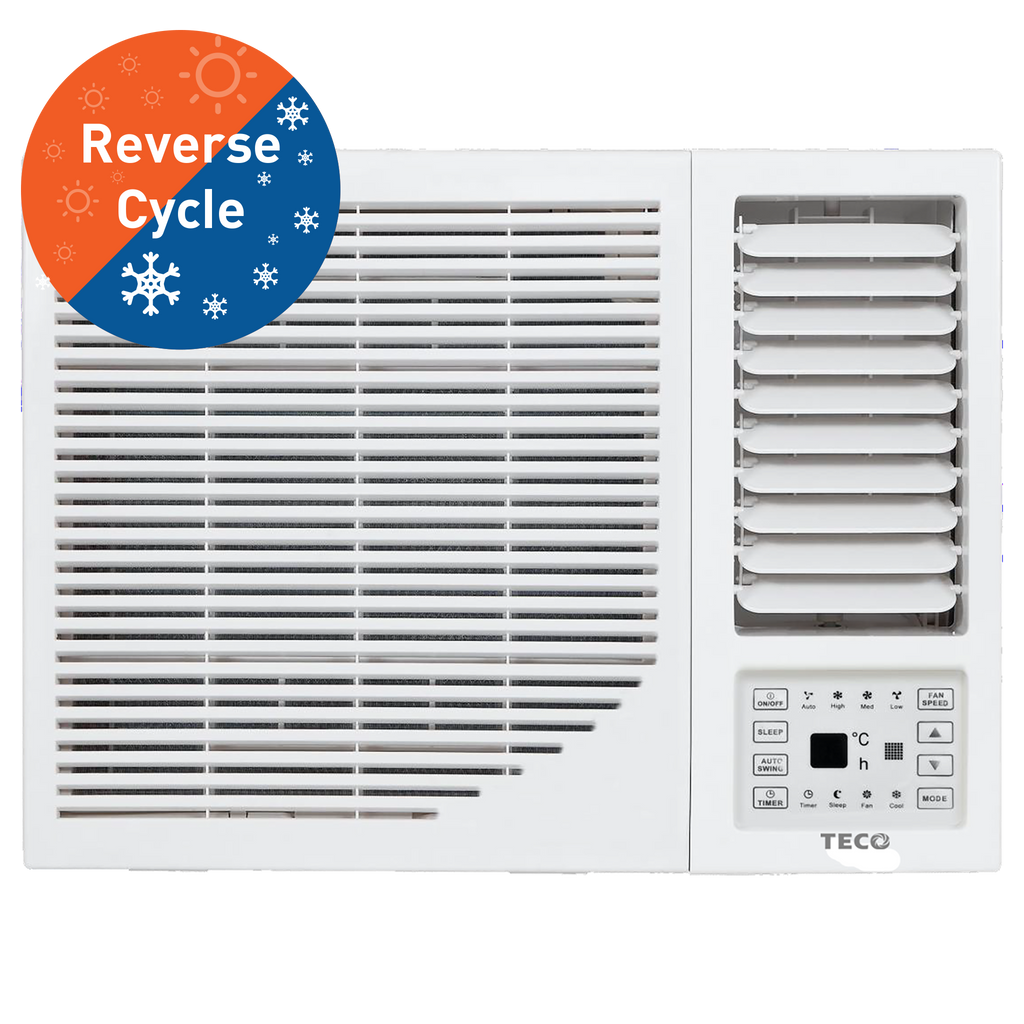

CLASSIC RANGE WINDOW / WALL AIR CONDITIONERS
This gives you the flexibility in choosing your installation location to suit your needs today and tomorrow. This product also lends itself to applications where a wall split or ducted system is not an option due to the building or housing modifications associated.
Electronic Control, Gold Fin, 3 in 1 Filter, Remote Control, H380mm x W600mm x D560mm
- Blue Fin protection on the coil allows it to dry more quickly when the unit is off. The protective coating also aids in allowing airborne contaminants to run off more freely. This ensures the product will perform at its best for longer
- A Fresh air switch can help when you feel the room needs fresh air only. Pull the fresh air switch to allow air from outside to enter in; and inside air to expel out
- A removable front panel gives easy access for cleaning.
Dimensions
- Height:375mm
- Width: 560mm
- Depth: 668mm
- Net/Gross Weight: 48/43.5kg
- Recommended cut-out size (HxW):
- 380x565mm
Power supply | V-Ph-Hz | 220~240 - 1-50 | |||
Cooling | Capacity | kW | 2.8 | ||
Input | W | 840 | |||
Rated Run Current | A | 3.63 | |||
A.E.E.R | 3.3 | ||||
Star Rating* | (Hot / Avg. / Cold) | 2 / 1.5 / 1.5 | |||
Heating | Capacity | kW | 2.45 | ||
Input | W | 740 | |||
Rated Run Current | A | 3.25 | |||
A.C.O.P. | 3.3 | ||||
Star Rating* | (Hot / Avg. / Cold) | 1 / 0.5 / 0.5 | |||
Plug Size | A | 10 | |||
Moisture Removal | L/hr | 1.0 | |||
Fan Speeds | 3 + Auto | ||||
Indoor Cooling Air Flow (max) | L/s | 133 | |||
Compressor Type | Rotary | ||||
Indoor Sound Pressure (Low / Med / Hi) | dB(A) | 50 / 48 / 46 | |||
Outdoor Sound Power | dB(A) | 66 | |||
Dimension (H*W*D) | mm | 375 x 560 x 668 | |||
Packing (H*W*D) | mm | 425 x 623 x 766 | |||
Net/Gross weight | Kg | 40 / 43.5 | |||
Recommended Cut-out Size (H*W) | mm | 380 x 565 | |||
Refrigerant Type | R32 | ||||
Outdoor Operation Temp. | Cooling | °C | 18~43 | ||
Heating | °C | -7~30 |
