Description
Available in WA Only

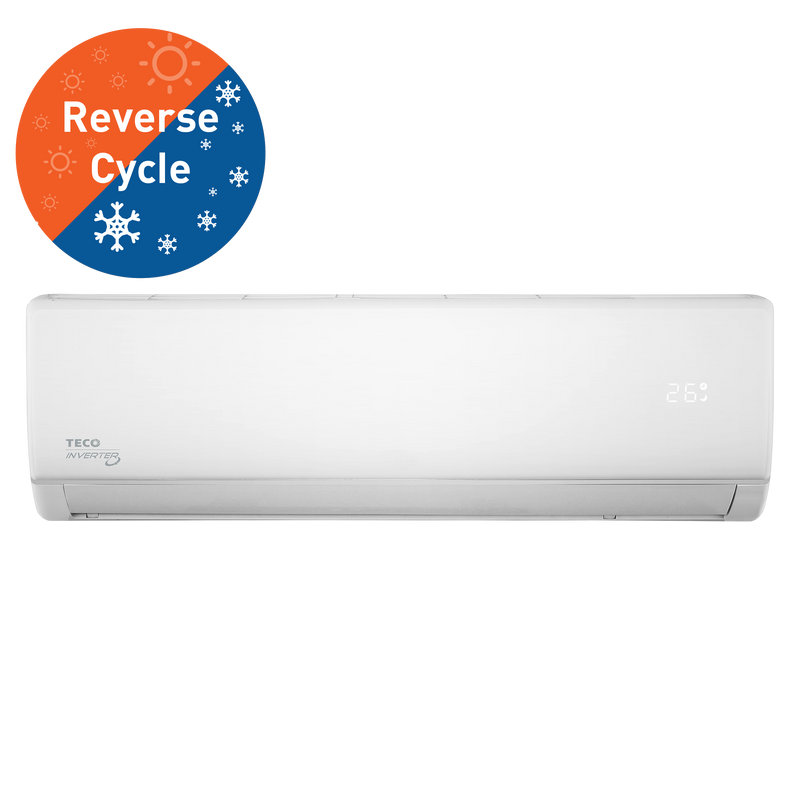

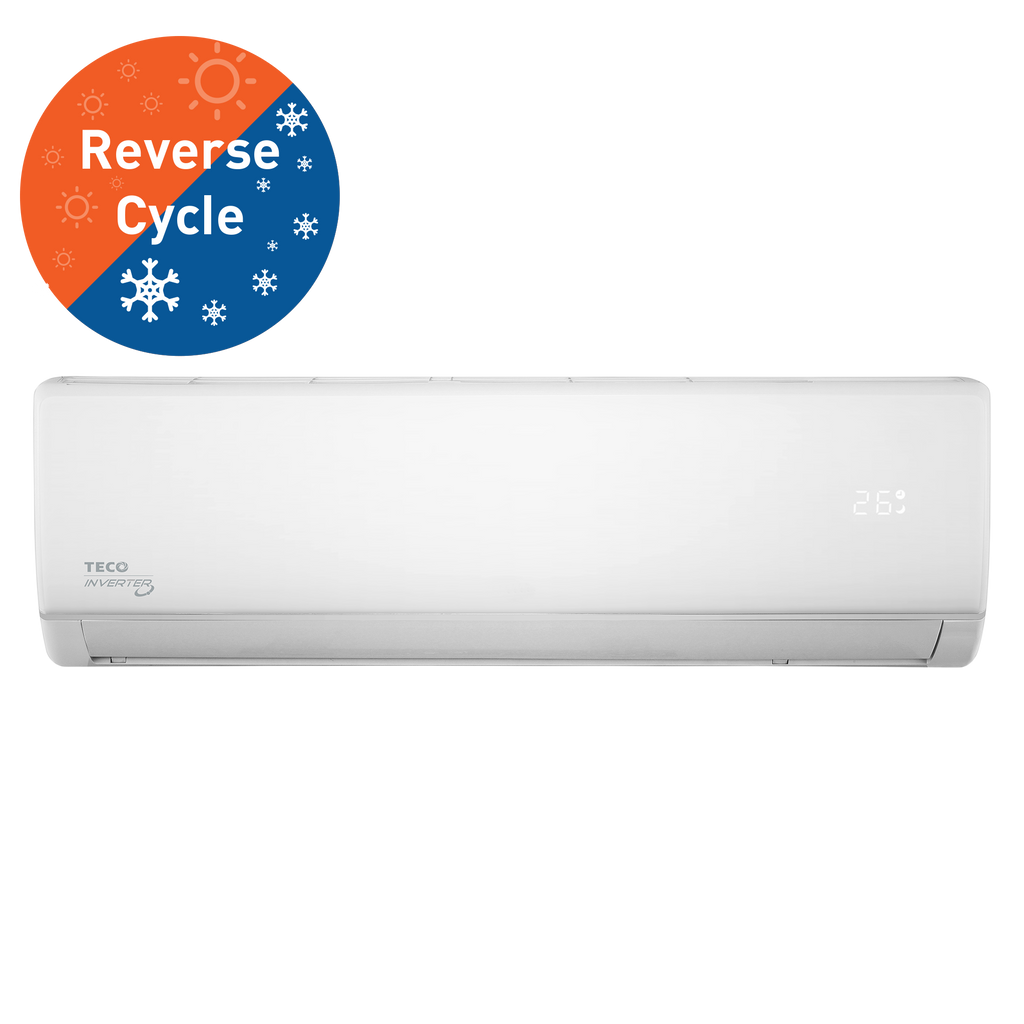

Upgrade your cooling and heating game with the TECO 5.0kW Inverter Reverse Cycle Split Air Conditioner, now available exclusively in WA. This high-performance unit utilizes inverter technology for energy efficiency and customizable comfort. Enjoy a consistent, comfortable temperature all year round with this cutting-edge air conditioner.
Dimensions
- Indoor dimensions (H x W x D) mm 315 x 986 x 225
- Indoor net weight Kg 13.0

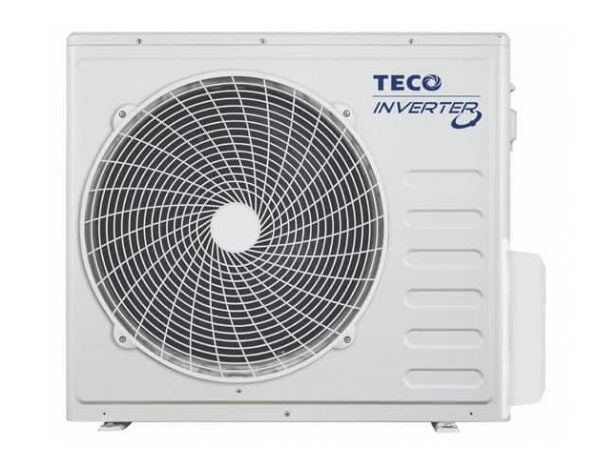

- Outdoor dimensions (H x W x D) mm 700 x 952 x 380
- Outdoor net weight Kg 45.0
Exceptional Energy Efficiency
- Offering outstanding energy efficiency with up to 9 star rating*. The higher the star rating, the more it helps to keep running costs down.
- *Refer to pages 6 & 7 of the 2021 Split System brochure for more MEPS energy star rating information.
3D Air Flow
- Combines vertical and horizontal auto swing to ensure an even distribution of
- conditioned air throughout the room.
4 Way Auto Swing
- Cleverly designed to evenly distribute conditioned air. This helps warm up or cool down faster, evenly and continuously.
R32 Refrigerant
- R32 is a next generation refrigerant, not only does it enhance performance by carrying heat, it also has no impact on ozone depletion and minimises Global-Warming Potential (GWP) compared to traditional refrigerants.
Built-in Wi-Fi
- The built-in Wi-Fi enables you to control the air conditioner from anywhere using your mobile phone or tablet. Download our App for your smart device and control your indoor unit remotely either in or out of home.
- Compatible with popular smart speakers (Google & Alexa).
Gold Fin Protection
- Gold Fin Protection aids in reducing corrosive effects on outdoor coils and preserves heat exchange capacity for longer. Gold Fin also promotes the effectiveness of the Self Clean function on indoor evaporator coils.
Service Friendly
- In-built diagnostics, easily accessible panels and detection system
- ensures each unit is easy to maintain and service.
Louvre Memory
- The indoor unit remembers the last angle you had the louvre set at so you don’t have to re-select each time you start the unit.
| TECO Model No. (indoor/outdoor) | TWS50H3DVGA TSO50H3DVGA | ||
| Power supply | V - Ph-Hz | 220~240 - 1-50 | |
| Power supply attachment | Outdoor | ||
| Cooling | Capacity (MEPS) | kW |
5.20 (1.30-5.70) |
| Running current | A | 5.6 | |
| Power input | W | 1,280 | |
| E.E.R. rating | 4.06 | ||
| Star rating (zone) (Hot/Med/Cold) | 4.5 / 4 / 4.5 | ||
| Heating | Capacity (MEPS) | kW |
5.20 (1.30-6.30) |
| Running current | A | 5.5 | |
| Power input | W | 1,260 | |
| C.O.P. rating | 4.13 | ||
| Star rating (zone) (Hot/Med/Cold) | 3 / 2.5 / 2 | ||
| Moisture removal | L/Hr | 1.6 | |
| Indoor fan speeds | Turbo/ H/M/L/Silent | 5 | |
| Indoor cooling air flow (max) | L/s | 291 | |
| Compressor type | Rotary | ||
| Indoor sound power level | dB(A) | 61 | |
| Outdoor sound power level | dB(A) | 60 | |
| Refrigerant type | R32 | ||
| Connection pipe size (Liquid / Gas) | mm (inch) | 6.35 / 12.7 (1/4” / 1/2”) | |
| Max. pipe length | m | 20 | |
| Max. height difference | m | 10 | |
| Pipe connection method | Flare | ||
|
Indoor dimensions (H x W x D) |
mm | 315 x 986 x 225 | |
| Indoor net weight | Kg | 13.0 | |
|
Outdoor dimensions (H x W x D) |
mm | 700 x 952 x 380 | |
| Outdoor net weight | Kg | 45.0 | |
| Ambient temperature (Cooling / Heating) | °C | 16~52 / -15~32 | |
