Description

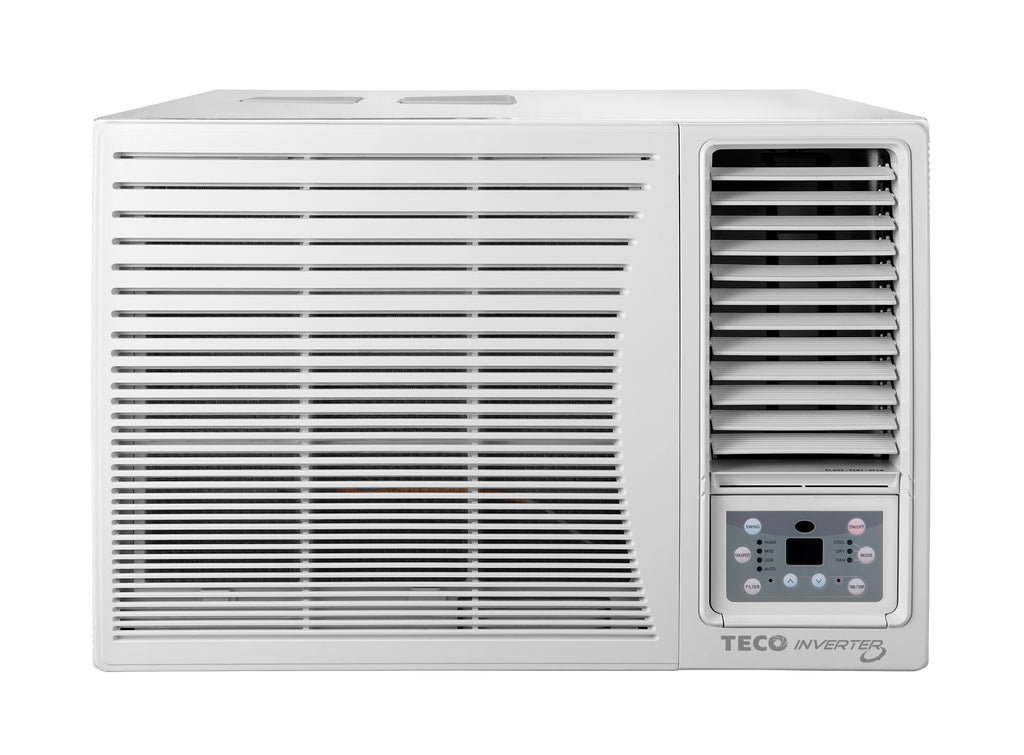

Elevate your comfort levels with the TECO TWW53HVAG 5.3kW air conditioner, where energy efficiency meets powerful performance. This state-of-the-art unit is perfect for creating an ideal indoor environment in both your home and office.
Key Features of the TECO TWW53HVAG 5.3kW Air Conditioner
-
High Cooling and Heating Capacity: Experience ultimate comfort with an impressive 5300W cooling and 4800W heating capacity, ensuring your space remains comfortable in any season.
-
Energy Efficient Performance: Save on energy bills with an EER of 3.31. This air conditioner minimizes power consumption while delivering effective climate control, making it a smart choice for eco-conscious consumers.
-
Whisper-Quiet Operation: Enjoy a peaceful atmosphere with noise levels as low as 65 dB(A) indoors and 69 dB(A) outdoors, making it ideal for both residential and commercial settings.
-
Superior Airflow Distribution: Benefit from an impressive airflow volume of up to 800 m³/h, providing efficient cooling and heating coverage throughout your space.
-
Effective Dehumidification: Enhance your indoor air quality with a dehumidifying capacity of 2.2 L/h, effectively reducing humidity and ensuring a comfortable living environment.
-
Versatile Application Area: Perfect for medium to large rooms, the TECO TWW53HVAG is suitable for spaces ranging from 23 to 34 m², providing flexibility for various installation needs.
-
Durable Design with Moisture Protection: With an IPX4 moisture protection rating, this unit is built to withstand outdoor conditions, ensuring reliability and durability.
-

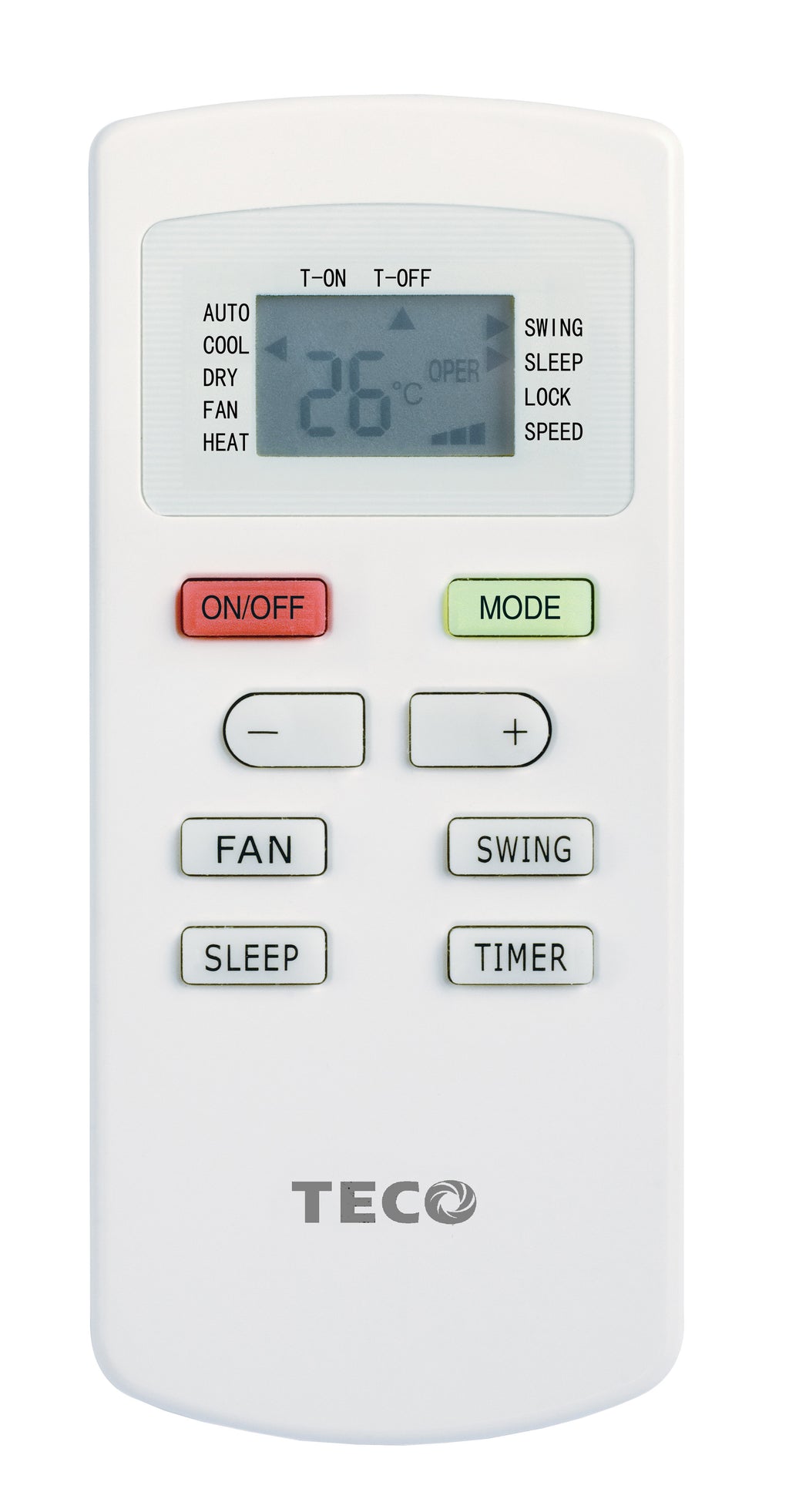

Convenient Remote Control Operation: Easily adjust settings from anywhere in the room with the user-friendly remote control, enhancing your comfort and convenience.
| TECO INVERTER WINDOW WALL AIR CONDITIONER | — | 5.3kW | |
| TECO Model | — | TWW53HVAG | |
| TECO EAN Code | — | 9346998006756 | |
|
Power Supply
|
Rated Voltage | V | 220-240 |
| Rated Frequency | Hz | 50 | |
| Phases | — | 1 | |
| Cooling Capacity | W | 5300 | |
| Cooling Capacity Range | W | 5300(Rated)/2600(Mid) | |
| Cooling Power Input | W | 1600 | |
| Cooling Power Input Range | W | 1600(Rated)/700(Mid) | |
| Cooling Power Current | A | 7 | |
| Cooling Power Current Range | A | 7.0(Rated)/3.4(Mid) | |
| Heating Capacity | W | 4800 | |
| Heating Capacity Range | W | 4800(Rated)/2450(Mid) | |
| Heating Power Input | W | 1400 | |
| Heating Power Input Range | W | 1400(Rated)/600(Mid) | |
| Heating Power Current | A | 6.6 | |
| Heating Power Current Range | A | 6.6(Rated)/3.0(Mid) | |
| EER | W/W | 3.3125 | |
| AEER | W/W | 3.2827 | |
| Cooling Star Rating (Hot / Mixed / Cold) | 2.5/2.5/2.5 | ||
| Cooling Energy Consumption (Hot / Mixed / Cold) | kWh/year | 1624/544/356 | |
| COP | W | 3.4286 | |
| ACOP | W | 3.3934 | |
| Heating Star Rating (Hot / Mixed / Cold) | 2/1.5/1.5 | ||
| Heating Energy Consumption (Hot / Mixed / Cold) | kWh/year | 118/760/2001 | |
| Noise (Energy Label – Indoor / Outdoor) | dB(A) | 65/69 | |
| Rated Input (Max) | W | 2400 | |
| Rated Current (Max) | A | 10 | |
| Inactive Energy (Avg) | W | 4.3 | |
| Air Flow Volume(H/M/L) | m3/h | 800/700/620 | |
| Air Flow Volume(H/M/L) | L/s | 222/194/172 | |
| Air Flow Volume(H/M/L) | CFM | 471/412/365 | |
| Dehumidifying Volume | L/h | 2.2 | |
| Dehumidifying Volume | Pint/h | 4.65 | |
| Application Area | m2 | 23-34 | |
| Permissible Excessive Operating Pressure for the Discharge Side | MPa | 4.3 | |
| Permissible Excessive Operating Pressure for the Suction Side | MPa | 2.5 | |
| Maximum Allowable Pressure | MPa | 4.3 | |
| Climate Type | — | T1 | |
| Isolation | — | I | |
| Moisture Protection | — | IPX4<outdoor> | |
| Evaporater Coil Hydrophilic Coating | — | Blue | |
| Condensor Coil Hydrophilic Coating | — | Gold | |
| Dimension (W×H×D) | mm | 660x428x800 | |
| Recommended Cut Out Size (W×H) | mm | 665×433 | |
| Dimension of Carton Box (L×W×H) | mm | 887x736x490 | |
| Dimension of Package (L×W×H) | mm | 890x739x505 | |
| Net Weight | kg | 56 | |
| Gross Weight | kg | 60 | |
| Stacking layers | 6 | ||
| Refrigerant | — | R32 | |
| Refrigerant Charge | kg | 0.9 | |
|
Indoor Side
|
Fan Type | Centrifugal | |
| Set Temperature Range | ℃ | 16～30 | |
| Sound Pressure Level (H/M/L) | dB (A) | 54/52/50 | |
| Sound Power Level (H/M/L) | dB (A) | 64/62/60 | |
|
Outdoor Side
|
|||
| Cooling Operation Ambient Temperature Range | ℃ | 18～43 | |
| Heating Operation Ambient Temperature Range | ℃ | -7～24 | |
| Sound Pressure Level (H/M/L) | dB (A) | 61/59/57 | |
| Sound Power Level (H/M/L) | dB (A) | 71/69/67 | |
| Container Loading Quantity (20GP/40GP/40HQ) | 72/156/195 | ||
| Electronic Control with Remote Controller | YES | ||
|
General Function
|
Auto | YES | |
| Cooling | YES | ||
| Heating | YES | ||
| Dehumidify | YES | ||
| Sleep | YES | ||
| Timer | YES | ||
| Auto Swing (Horizontal Auto Swing) | YES | ||
| Air Flow | YES | ||
| Memory | YES | ||
| Auto Fan | YES | ||
| Filter Dirty Alarm | YES | ||
| Soft Start | YES | ||
| Low Voltage Startup | YES | ||
| Intelligent Preheating | YES | ||
| Auto Restart | YES | ||
| Self Diagnosis | YES | ||
| Silver Ion Sterilizing Filter | YES | ||
