Description

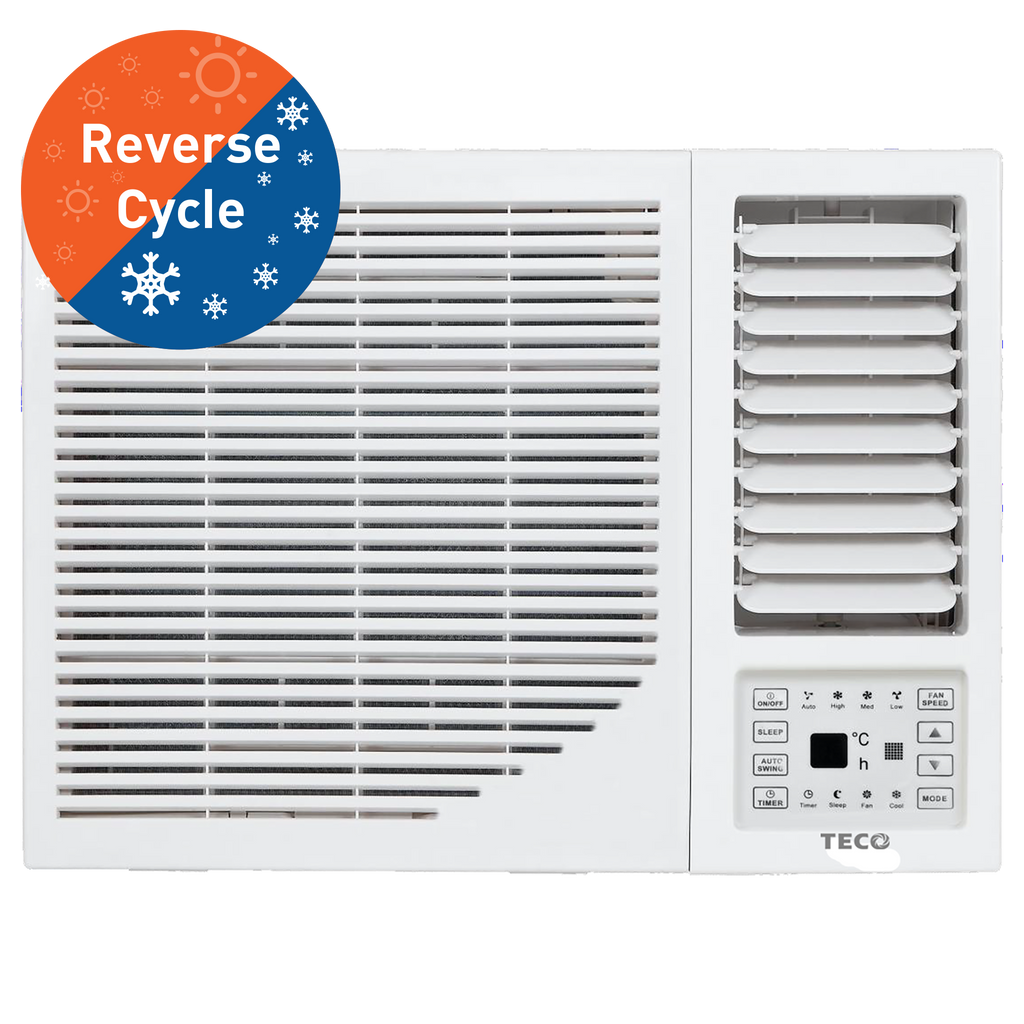

Upgrade your indoor climate with the TECO 6.1kW Reverse Cycle Window Wall Air Conditioner, a cutting-edge solution designed to deliver superior performance and convenience. This high-efficiency model incorporates the latest technology to ensure optimal comfort and control.
Key Features:
- Advanced Electronic Control: NEW model with intuitive electronic control for precise temperature management.
- Built-in Wi-Fi: Seamlessly connect and control your air conditioner from anywhere using built-in Wi-Fi, compatible with “Alexa” and “Google Assistant” voice commands.
- Gold Fin Protection: Superior corrosion resistance on both indoor and outdoor coils, offering 1500 hours of protection under salt spray conditions—20 times more effective than Blue Fin.
- Silver Ion Filter: Advanced filtration technology that eliminates bacteria, viruses, and mold spores for cleaner, healthier air.
- High-Density Filters: Traps fine dust particles, enhancing air quality and reducing allergens.
- Wireless Remote Control: Conveniently manage your air conditioner’s settings from anywhere in the room without leaving your seat.
- Energy Efficiency: Rated with a 1.5 Star MEPS and equipped with R32 refrigerant for lower energy consumption and environmental impact.
- Compact Dimensions: With a height of 428 mm, width of 660 mm, and depth of 770 mm, this unit fits seamlessly into various spaces.
| TECO Model | — | TWW61HFWEG | |
| TECO EAN Code | — | 9346998006862 | |
|
Power Supply
|
Rated Voltage | V | 220-240 |
| Rated Frequency | Hz | 50 | |
| Phases | — | 1 | |
| Cooling Capacity | W | 6090 | |
| Cooling Power Input | W | 1840 | |
| Cooling Power Current | A | 8.1 | |
| Heating Capacity | W | 5800 | |
| Heating Power Input | W | 1775 | |
| Heating Power Current | A | 7.6 | |
| Cooling Star Rating (Hot / Average / Cold) | 1.5 / 1.5 / 1.5 | ||
| Cooling Energy Consumption (Hot / Average / Cold) | kWh/year | 2297/773/510 | |
| Heating Star Rating (Hot / Average / Cold) | 1 / 0.5 / 0.5 | ||
| Heating Energy Consumption (Hot / Average / Cold) | kWh/year | 184/1333/3454 | |
| Noise (Energy Label – Indoor / Outdoor) | dB(A) | 65/73 | |
| Rated Input (Max) | W | 2600 | |
| Rated Current (Max) | A | 13.2 | |
| Starting Current | A | 39 | |
| EER | W/W | 3.31 | |
| COP | W/W | 3.26 | |
| Air Flow Volume(H/M/L) | m3/h | 840/780/720 | |
| Air Flow Volume(H/M/L) | CFM | 494/459/424 | |
| Dehumidifying Volume | L/h | 2.20 | |
| Application Area | m2 | 27-42 | |
| Permissible Excessive Operating Pressure for the Discharge Side | MPa | 4.3 | |
| Permissible Excessive Operating Pressure for the Suction Side | MPa | 2.5 | |
| Maximum Allowable Pressure | MPa | 4.3 | |
| Throttling Method | — | Capillary | |
| Climate Type | — | T1 | |
| Isolation | — | I | |
| Moisture Protection | — | IPX4<outdoor> | |
| Dimension (W×H×D) | mm | 660×428×770 | |
| Dimension of Carton Box (L×W×H) | mm | 860×736×490 | |
| Dimension of Package (L×W×H) | mm | 863×739×505 | |
| Net Weight | kg | 65 | |
| Gross Weight | kg | 70 | |
| Refrigerant | — | R32 | |
| Refrigerant Charge | kg | 1.05 | |
|
Indoor Side
|
Fan Type | Centrifugal | |
| Set Temperature Range | ℃ | 16～30 | |
| Sound Pressure Level (H/M/L) | dB (A) | 56/54/52 | |
| Sound Power Level (H/M/L) | dB (A) | 66/64/62 | |
|
Outdoor Side
|
Outdoor Unit Air Flow Volume | m3/h | 1800 |
| Outdoor Unit Air Flow Volume | CFM | 1059 | |
| Cooling Operation Ambient Temperature Range | ℃ | 18～43 | |
| Heating Operation Ambient Temperature Range | ℃ | -7～30 | |
| Sound Pressure Level (H/M/L) | dB (A) | 64/62/60 | |
| Sound Power Level (H/M/L) | dB (A) | 74/72/70 | |
| Electronic Control with Remote Controller | YES | ||
| WIFI | YES | ||
|
General Control Function
|
Auto | YES | |
| Cooling | YES | ||
| Heating | YES | ||
| Dehumidify | YES | ||
| Sleep | YES | ||
| Timer | YES | ||
| Auto Swing (Horizontal Auto Swing) | YES | ||
| Air Flow | YES | ||
| Memory | YES | ||
| Auto Fan | YES | ||
|
Function Related with PCB
|
Filter Dirty Alarm | YES | |
| Low Voltage Startup | YES | ||
| Self Diagnosis | YES | ||
|
Function Unrelated with PCB
|
Ventilation # | YES | |
| Silver Ion Sterilizing Filter | YES | ||
